Dufix 100y fixed louvers

gallery gallery gallery gallery gallery

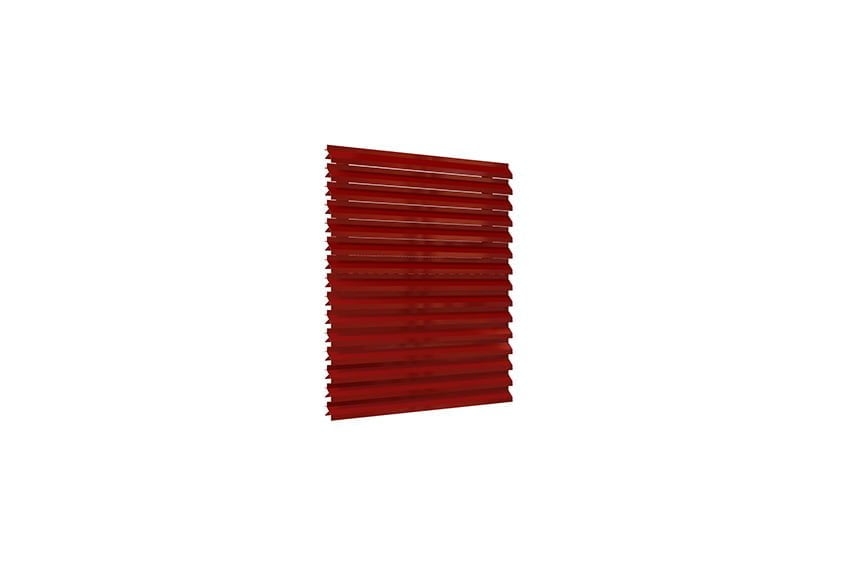

The DULINE 100y continuous fixed louver lattices are sun protectors designed to provide unbroken coverage of large areas.

The constant separation of the louvers gives a uniform look to a building, and turns the sun protection system into a highly compact feature of the facade, without the need to place exterior or visible uprights, which offers a beautifully smooth linear image.

The DULINE 100y lattices are ideal for large enclosures that require ventilation.

They can also be used to hide views, separate different areas, zones with machinery, galleries, etc.

DULINE 100y AL: An aluminium louver lattice that integrates perfectly into large areas and is long lasting thanks to it being made of aluminium. The finishes and the durability are guaranteed under the most stringent standards for anodysed and lacquered finishes.

These models can also be integrated into opening systems.

MODEL: Continuous Y-shaped fixed louver for large facades and fences Duline Y.
SIZE: 100 x 66 mm
WEIGHT: 6 kg/m2
INERTIA: 2.93 cm4
PROFILE: Duline 100y in extruded aluminium with 6063-T5 alloy.

*Maximum distance between supports.

Durmi range of standard RAL colours: RAL1015, 5008, 5010, 6005, 6009, 6028, 7011, 7012, 7016, 7022, 7031, 7035, 8014, 8017, 8019, 9005, 9011, 9010, 9016, natural anodysed silver.

Any RAL colour currently existing on the market is available as an option.

PVC finished in white or grey. Ask about other colours.

Horizontal or vertical louver position.
Wind resistance up to Class 6.
Fixed system, contact us for other systems.

Standard fixed system, contact us for other systems.

Compatible opening systems

Sistema de apertura

Fixed opening system
